How the MIDACO AFS2200 Air Filtration System Helps Improve Shop Air Quality, Worker Comfort, and Productivity

Walk into almost any busy CNC machine shop and you can usually see it in the air — a light haze near machining centers, grinding stations, welding areas, or fabrication equipment. Even in clean, organized facilities, airborne dust, smoke, coolant mist, and fine particulates can remain suspended in the environment for hours if they are not properly filtered.

These airborne contaminants are more than just an annoyance. Over time, they can affect employee comfort, indoor air quality, equipment cleanliness, and overall shop productivity.

As manufacturing facilities continue investing in automation, spindle uptime, and process efficiency, many shop owners are also realizing the importance of improving the air their employees breathe every day.

The MIDACO AFS2200 Air Filtration System was designed specifically for industrial manufacturing environments to help continuously circulate and filter shop air in machining, grinding, welding, and fabrication facilities.

Why Dust and Smoke Linger in CNC Machine Shops

Many manufacturing operations naturally create airborne particles during production processes.

Common sources include:

  • CNC machining operations
  • Grinding and deburring
  • Welding and fabrication
  • Dry machining applications
  • Material cutting and polishing
  • Forklift traffic and shop movement
  • Coolant mist and atomized fluids

What many people do not realize is that the finest airborne particles are often too small to settle quickly. Instead, they can remain suspended and continuously recirculate through the building.

In larger machine shops with multiple VMCs, grinders, or welding stations operating simultaneously, the concentration of airborne particulate can gradually build throughout the day — especially during colder months when doors remain closed and ventilation is reduced.

Without proper filtration and air circulation, these particles may eventually settle on:

  • CNC machine surfaces
  • Tooling and fixtures
  • Electrical cabinets
  • Inspection equipment
  • Inventory and finished parts
  • Floors, rafters, and lighting
  • Employee workstations

Over time, this buildup can increase housekeeping demands and create an uncomfortable work environment.

The Importance of Indoor Air Quality in Manufacturing

Indoor air quality is becoming a bigger focus across industrial environments for good reason.

According to the U.S. Environmental Protection Agency (EPA), poor indoor air quality can contribute to lost productivity and increased health-related costs in workplaces. Research also shows that cleaner indoor air may positively impact employee comfort, concentration, and workplace performance.

Studies on indoor air filtration have shown measurable reductions in airborne particulate concentrations when filtration systems are used properly.

Research published in Atmospheric Environment found that air filtration systems reduced indoor fine particulate concentrations by approximately 30–80% depending on the filtration method used.

Additional research published through the National Institutes of Health reported that air filtration reduced indoor fine particle concentrations by roughly 60% in monitored environments.

For manufacturing companies competing to attract and retain skilled labor, providing a cleaner and more comfortable work environment is becoming increasingly important.

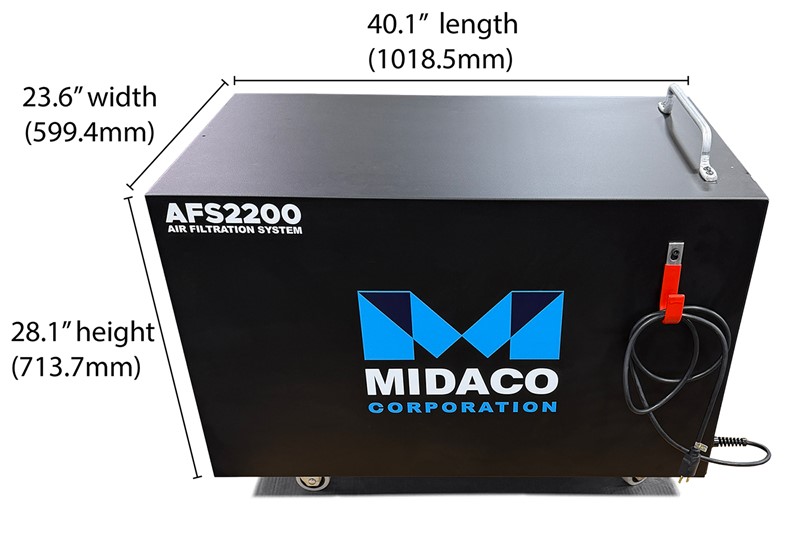

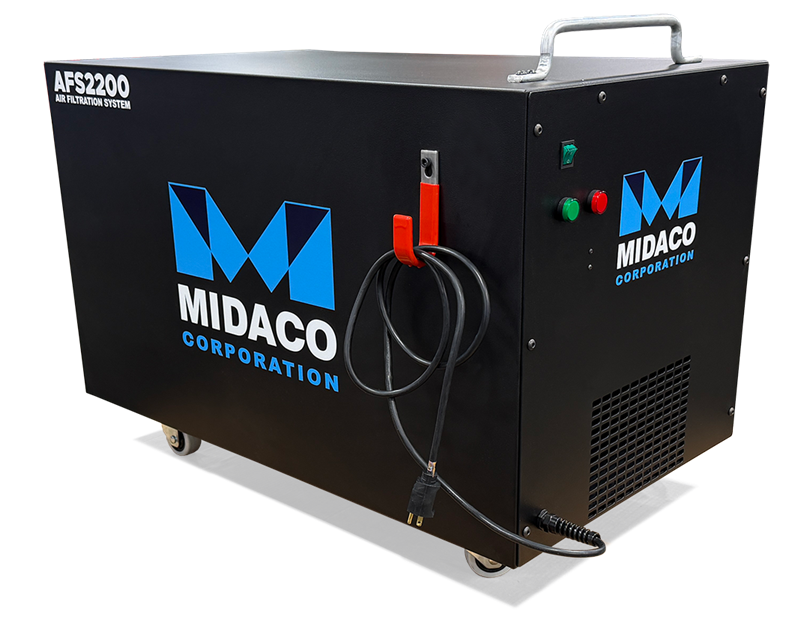

MIDACO AFS2200 Air Filtration System Overview

The MIDACO AFS2200 is a high-capacity industrial air filtration system designed to continuously circulate and filter shop air in manufacturing facilities.

The system features:

  • 2200 CFM airflow capacity
  • Multi-stage MERV 8 and MERV 15 filtration
  • ½ HP direct-drive blower

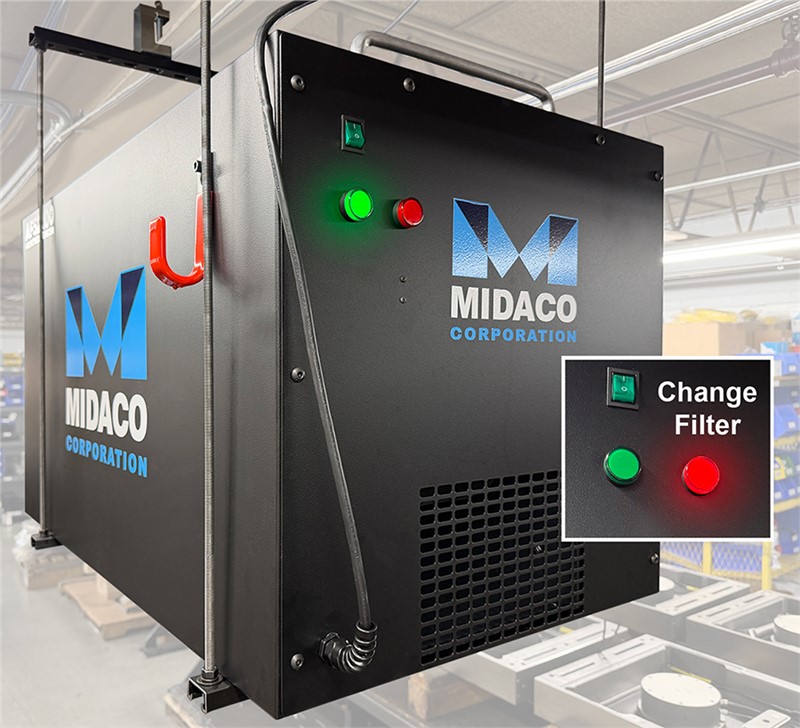

  • Differential pressure monitoring

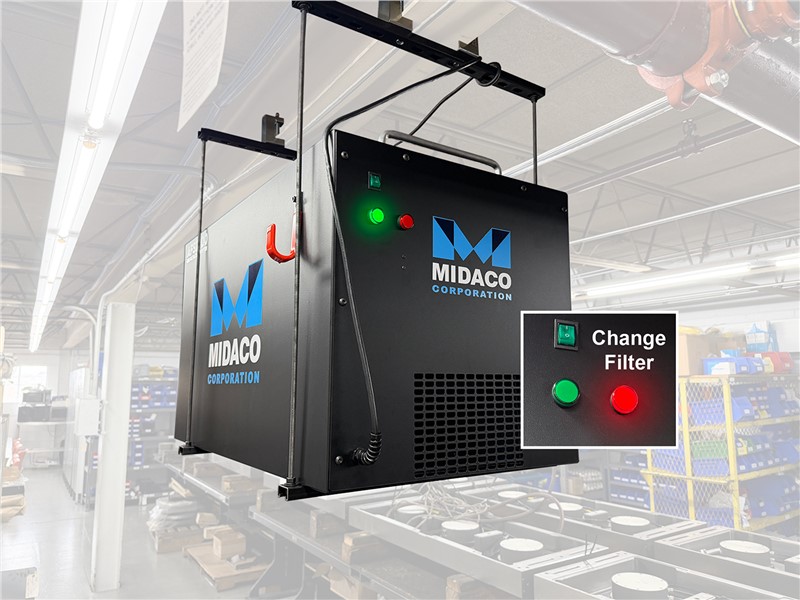

  • LED filter status indicators
  • Durable 16-gauge steel construction
  • 115V single-phase operation
  • Disposable and replaceable filters

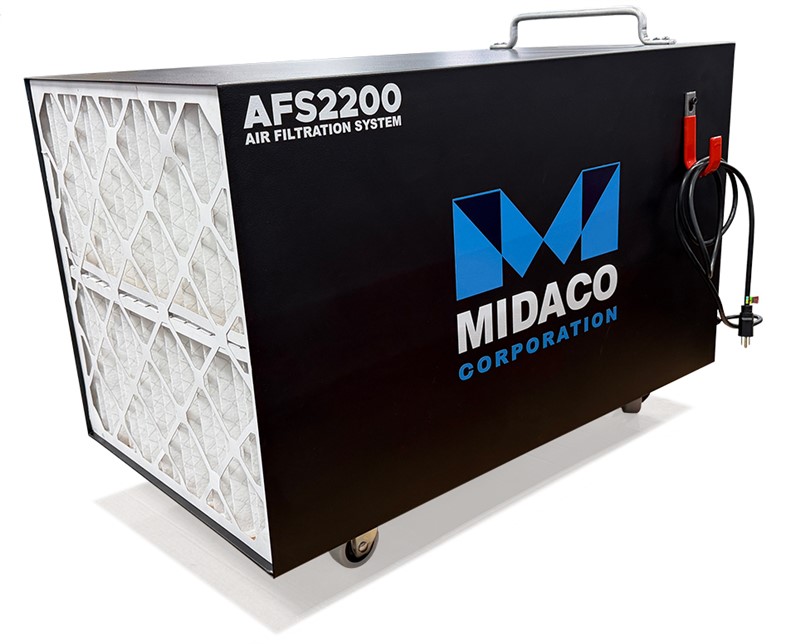

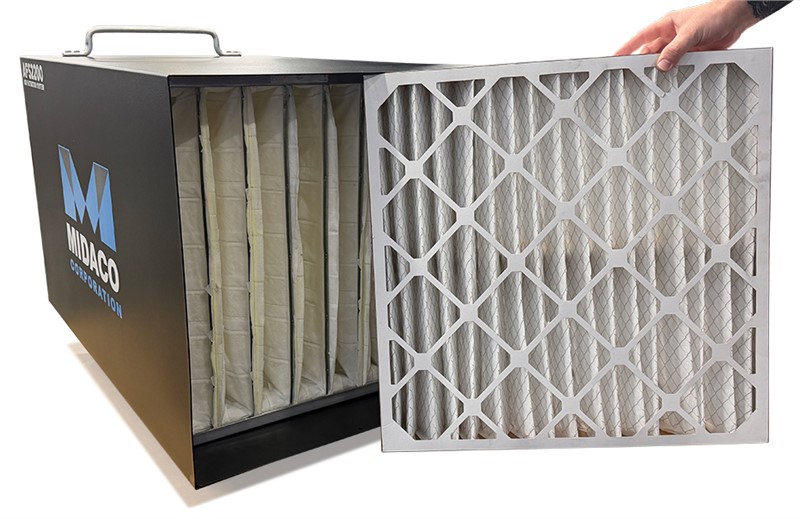

The multi-stage filtration system includes:

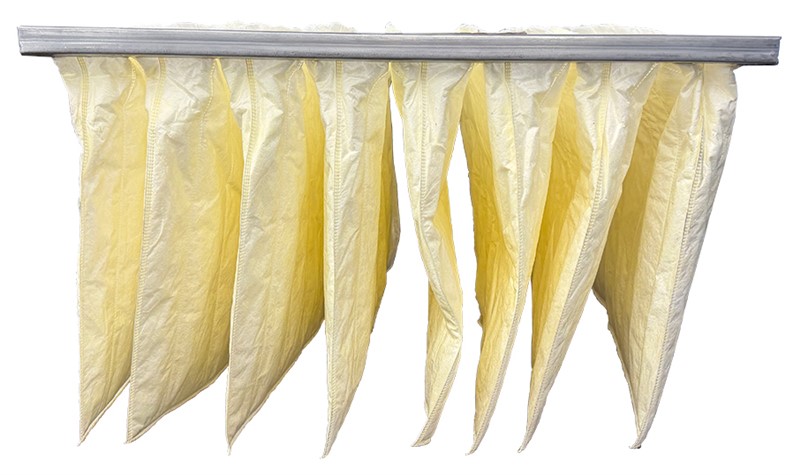

The MERV 15 secondary filtration stage is designed to capture approximately 85% of airborne particulate in the 0.3–1.0 micron range according to EPA filtration efficiency standards. This includes fine particulate matter commonly generated in machining, grinding, welding, and industrial manufacturing environments.

The filtration system is also effective in reducing PM2.5 airborne particulate, which is widely recognized as a significant indoor air quality and occupational health concern in industrial and commercial environments.

*Not for use of venting flammable particulates. Not for use in woodworking environments.


Flexible Installation Options for Manufacturing Facilities

One advantage of the MIDACO AFS2200 is installation flexibility.

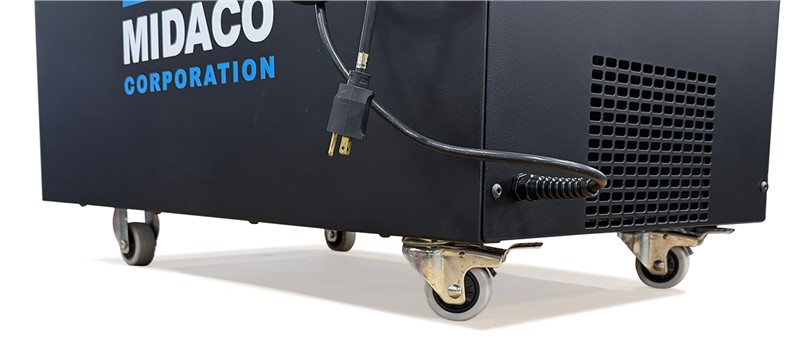

The unit comes standard mounted on four heavy-duty casters, allowing it to be moved throughout the shop as needed. Two of the casters include locking capability for added positioning stability and safety during operation.

This mobility can be useful for:

  • Temporary filtration near welding projects
  • Seasonal production changes
  • Shops rearranging machinery layouts
  • Supplemental filtration near high-particulate operations

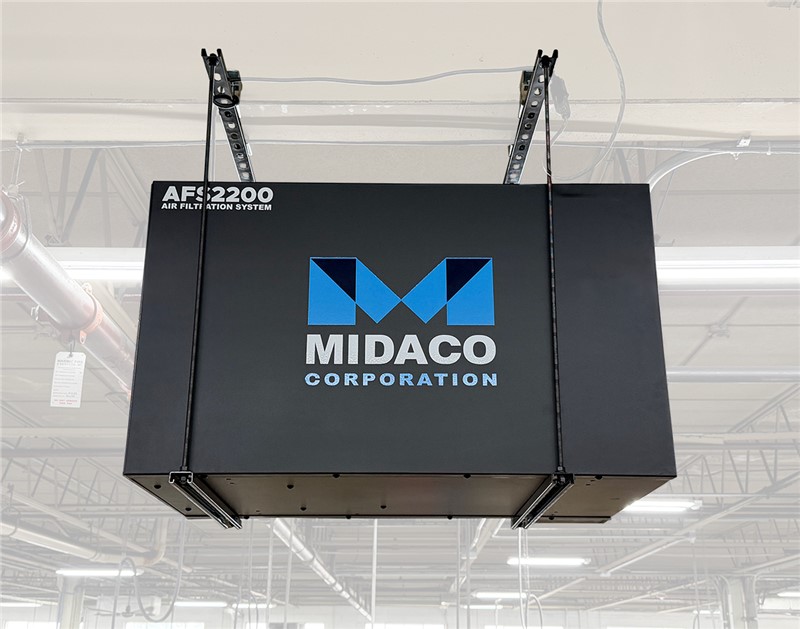

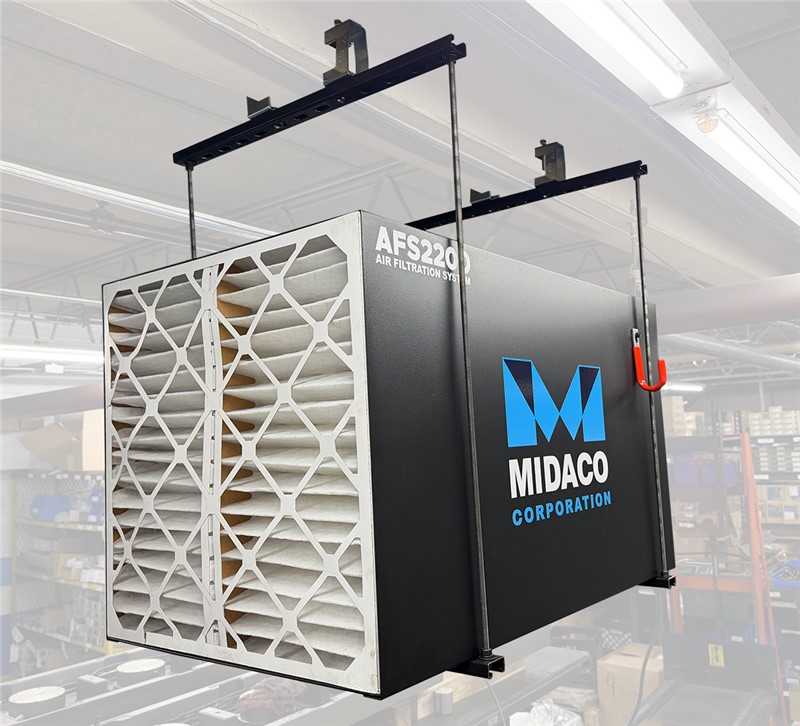

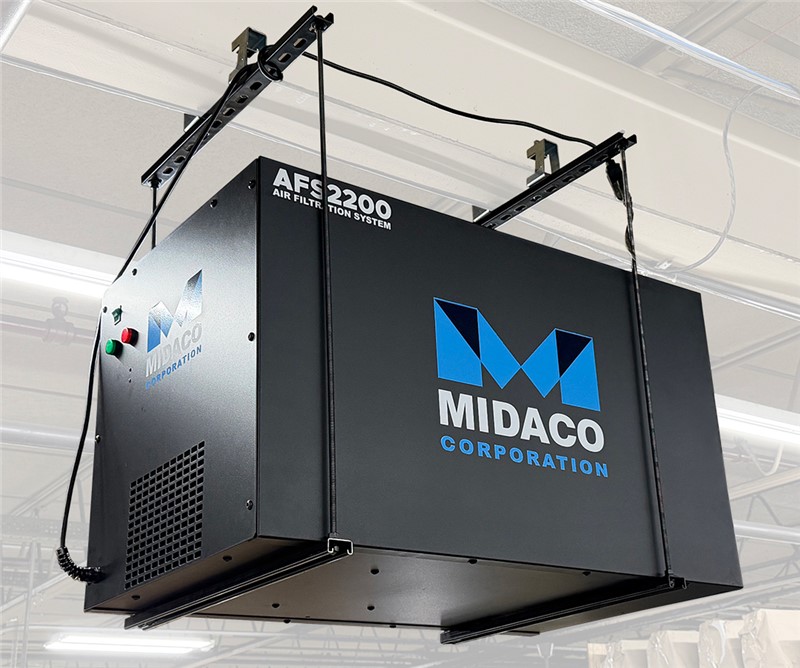

For facilities wanting a more permanent installation, MIDACO also offers optional Ceiling Mounting Brackets (Part #AFSCMK) for overhead mounting.

Ceiling-mounted positioning may help:

  • Save floor space
  • Improve airflow circulation patterns
  • Increase filtration coverage across larger production areas
  • Keep filtration equipment elevated away from traffic lanes

How Many AFS2200 Units Might a Shop Need?

The number of air filtration systems needed depends on several factors, including:

  • Ceiling height
  • Machine density
  • Number of grinding or welding operations
  • Overall shop layout
  • Desired air changes per hour (ACH)

Based on MIDACO specifications using 12-foot ceilings:

  • 1 AFS2200 unit provides approximately 11 ACH in a 1,000 sq. ft. area
  • 1 AFS2200 unit provides approximately 5.5 ACH in a 2,000 sq. ft. area

Example Applications

Small CNC Machine Shop – 2,000 sq. ft.

A small facility with:

  • Light fabrication
  • Minimal grinding

Recommended starting point:

Mid-Size Production Shop – 5,000 sq. ft.

A facility with:

  • Multiple CNC machining centers
  • Tool grinding
  • Moderate welding activity

Recommended starting point:

Larger Manufacturing Facility – 10,000+ sq. ft.

A production environment with:

  • Heavy machining
  • Grinding departments
  • Welding operations
  • Continuous production

Recommended starting point:

  • 4–6+ strategically positioned AFS2200 units depending on airflow requirements and contamination levels

Facilities with higher particulate generation may require additional filtration units to maintain desired air circulation performance.

Real-World Manufacturing Benefits

While every shop environment is different, improved air circulation and particulate filtration can help support:

  • Cleaner shop environments
  • Reduced airborne particulate buildup
  • Improved employee comfort
  • Better visibility in production areas
  • Cleaner machine surfaces and electrical enclosures
  • Reduced dust accumulation on tooling and inspection equipment
  • Improved overall housekeeping efficiency

For shops already investing in automation, spindle uptime, and process improvement, indoor air quality is another important part of creating a more efficient manufacturing environment — simply because the air is fresher to breathe.

Cleaner Air Supports Better Manufacturing

Modern machine shops focus heavily on productivity, automation, and spindle utilization — but maintaining cleaner indoor air is equally important for long-term operational performance and workplace quality.

The MIDACO AFS2200 Air Filtration System provides a practical industrial solution for continuously circulating and filtering shop air in CNC machining, grinding, welding, and fabrication environments.

Whether used as a mobile filtration solution on its heavy-duty caster system or permanently mounted overhead using optional ceiling brackets, the AFS2200 helps manufacturing facilities create cleaner and more comfortable workspaces throughout the shop floor.

For manufacturing companies focused on operational efficiency and employee workplace quality, improving indoor air filtration is no longer optional — it is becoming part of modern shop infrastructure.

The MIDACO AFS2200 is proudly made in the USA and designed for industrial durability and continuous shop airflow performance. For more information visit www.midaco-corp.com or contact the MIDACO sales team at (855) 593-5668 / sales@midaco-corp.com.


Built for Manufacturing. Built by MIDACO.
