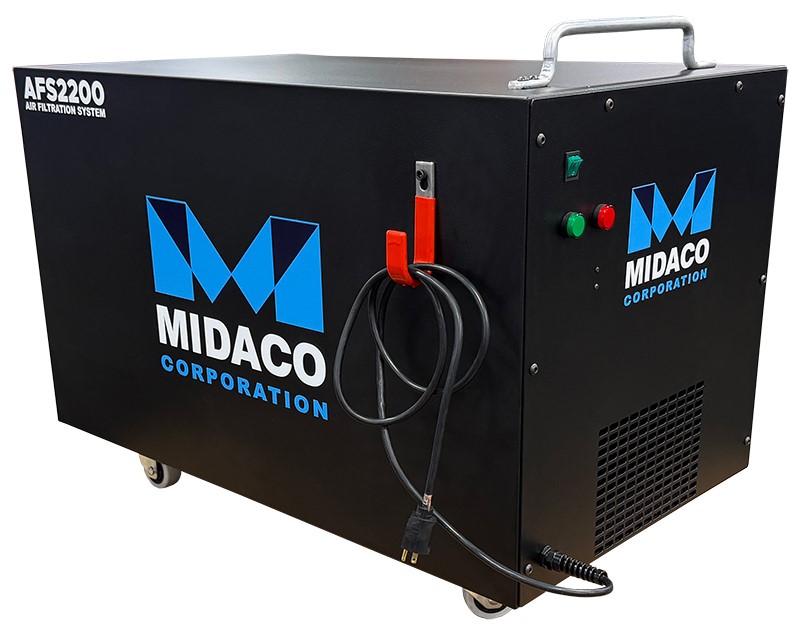

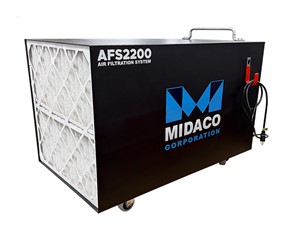

MIDACO AFS2200 Industrial Air Filtration System

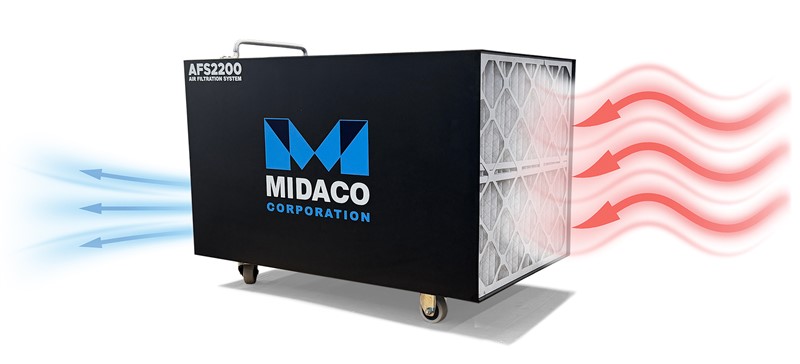

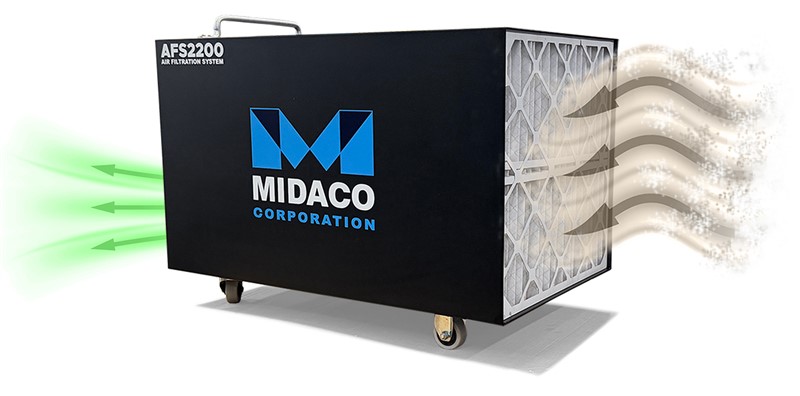

Featuring a powerful 2200 CFM airflow capacity and multi-stage filtration system, the AFS2200 helps improve air quality by continuously circulating and filtering shop air throughout industrial workspaces.
See AFS2200 Air Filtration System PDF Brochure

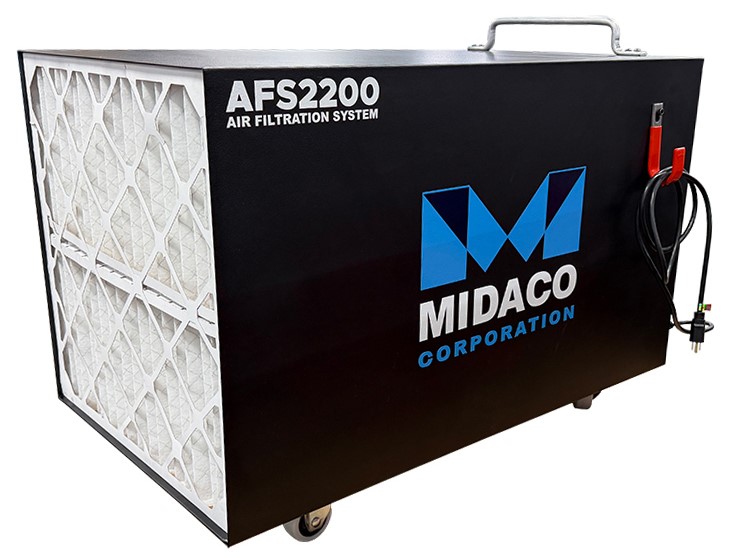

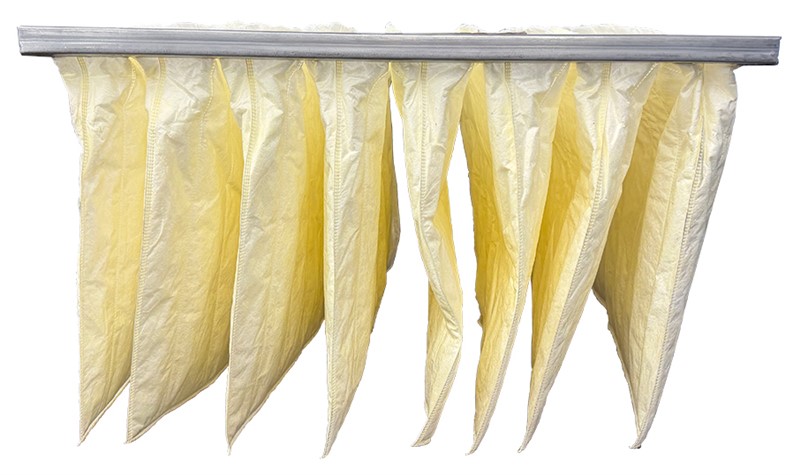

Multi-Stage Filtration

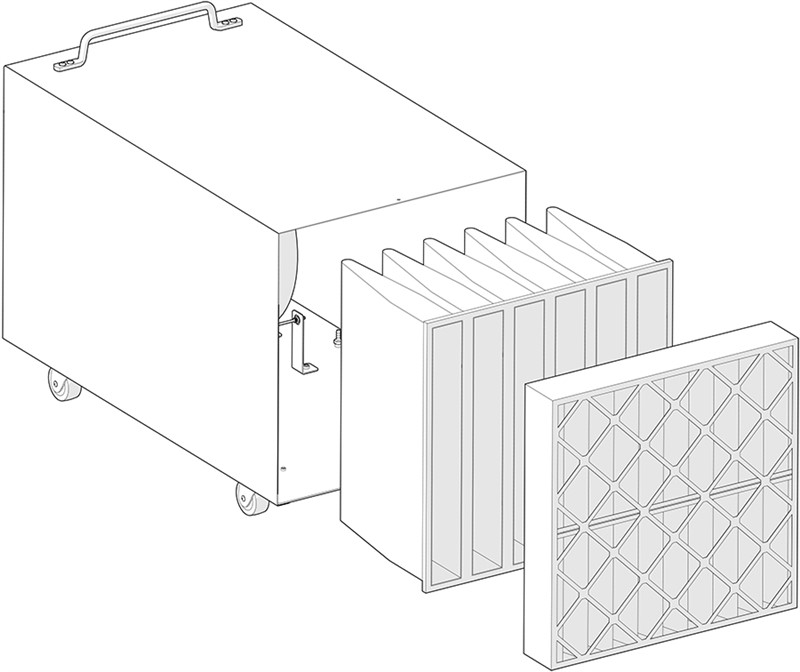

This 2-stage filtration with a MERV 8 and MERV 15 approach helps capture both larger and finer airborne particles. Filters are disposable and replaceable.
The MERV 15 secondary filtration stage is designed to capture approximately 85% of airborne particulate in the 0.3–1.0 micron range according to EPA filtration efficiency standards. This includes fine particulate matter commonly generated in CNC machining, grinding, welding, and industrial manufacturing environments*.
* NOTE: Not for venting flammable particulates or for use in woodworking environments.
LED Indicators

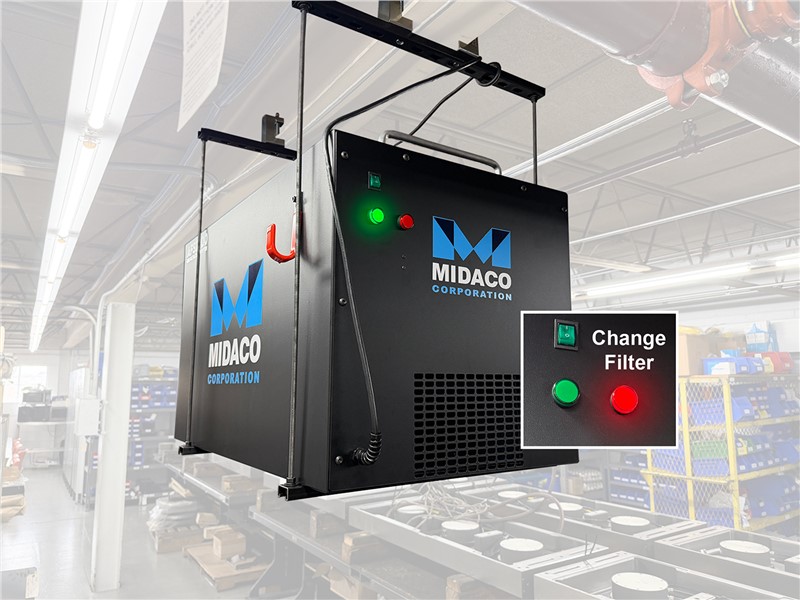

The AFS2200 also includes integrated differential pressure monitoring with RED and GREEN LED filter status indicators to simplify filter maintenance and operational monitoring.Estimated Air Changes Per Hour (ACH)
Based on 12-foot ceilings:
- 1,000 sq. ft. – Approximately 11 ACH
- 2,000 sq. ft. – Approximately 5.5 ACH

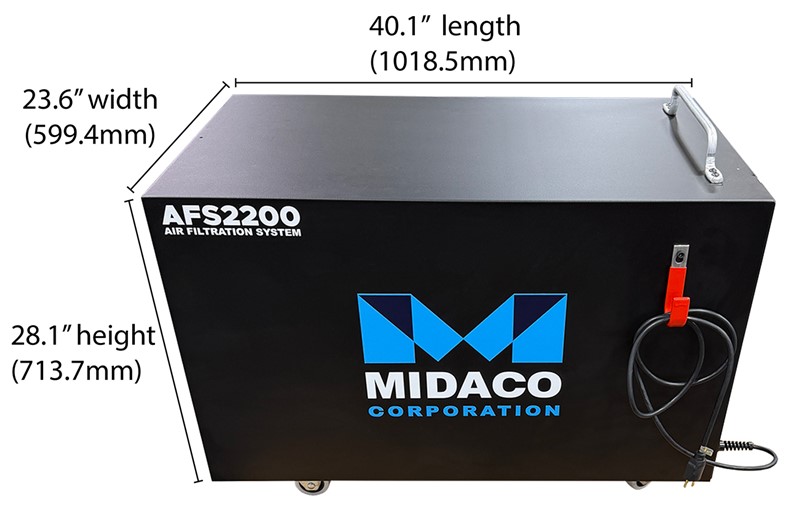

Dimensions
- 40.1” (1018.5mm) Length
- 23.6” (599.4mm) Width
- 28.1” (713.7mm) Height
Standard Features
- Mounted on four heavy-duty casters (2 locking) for easy mobility
- 2200 CFM airflow
- ½ HP direct-drive blower
- 115V / 60Hz operation
- 9.0 Full Load Amps
- Multi-stage MERV 8 / MERV 15 filtration
- Differential pressure monitoring
- LED filter status lights
- 16-gauge steel construction
- 8ft power cord NEMA 5-15P plug

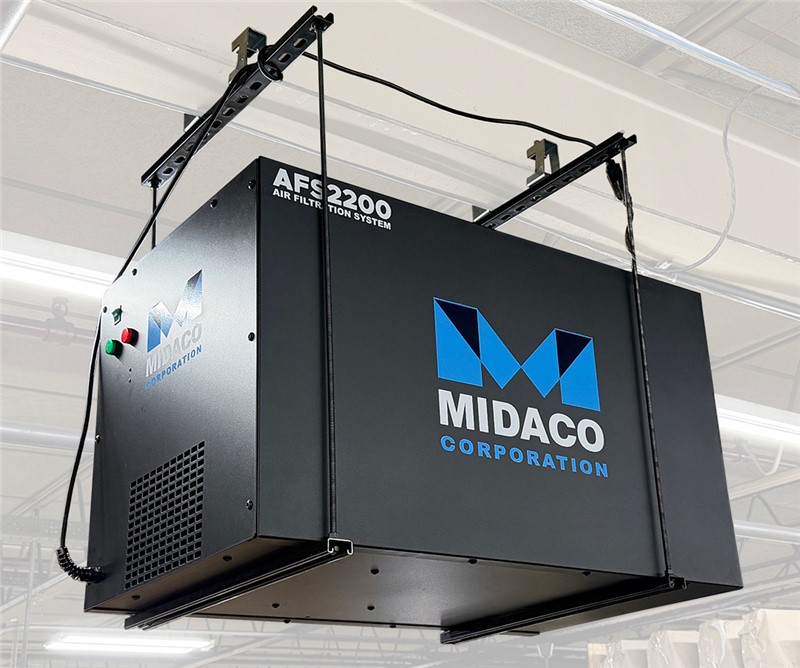

Optional Overhead Suspension Mounting Brackets part #AFSCMK available for ceiling mounted air filtration and space-saving airflow positioning.
The MIDACO AFS2200 is ideal for:
- CNC machine shops
- Grinding departments
- Welding environments
- Fabrication facilities
- Aerospace manufacturing
- Industrial production areas
* NOTE: Not for use of venting flammable particulates. Not for use in woodworking environments.
Proudly made in the USA. Built for industrial durability and dependable airflow performance, the MIDACO AFS2200 helps support cleaner CNC shop environments throughout the manufacturing floor.
Cleaner Air Supports Better Manufacturing
