What's Included

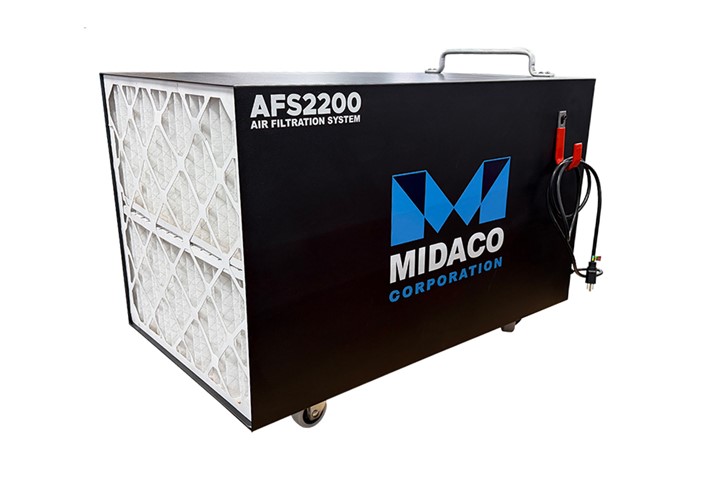

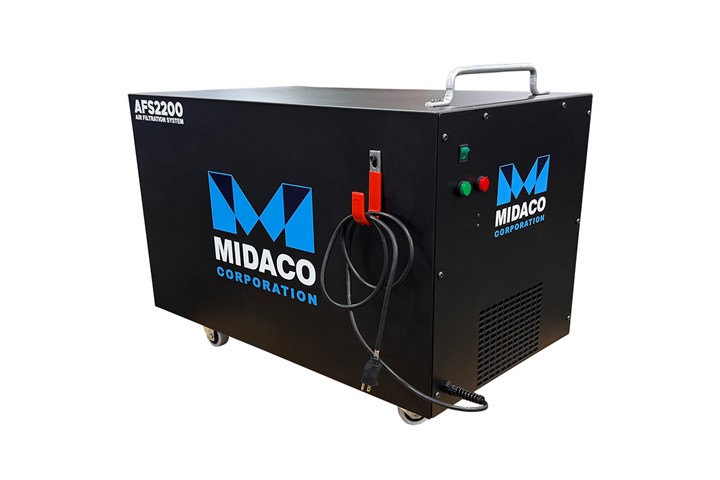

AFS2200 Air Filtration System
The MIDACO AFS2200 Air Filtration System is an industrial air filtration solution designed for machine shops, fabrication facilities, grinding departments, welding areas, and manufacturing environments. Featuring a powerful 2200 CFM direct-drive blower and multi-stage MERV 8 / MERV 15 filtration, the AFS2200 helps support cleaner circulating air in demanding industrial applications.
The system includes differential pressure filter monitoring with red and green LED status indicators for simplified filter maintenance and operational monitoring. Built from durable 16-gauge steel construction, the AFS2200 is engineered for long-term industrial use.
Features
- 2200 CFM airflow capacity
- ½ HP direct-drive blower

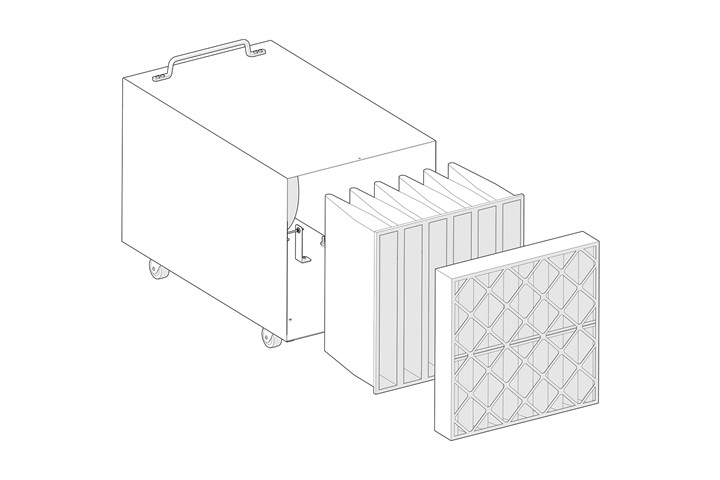

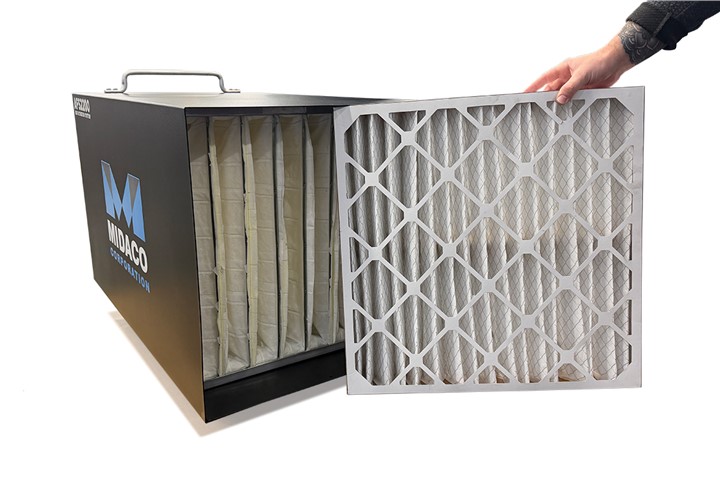

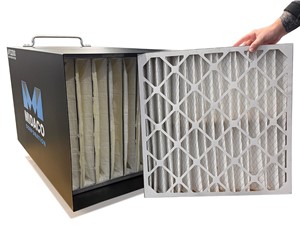

- Multi-stage MERV 8 and MERV 15 filtration
- Differential pressure filter monitoring
- Red & green LED filter status lights
- Heavy-duty 16-gauge steel construction
- Compact industrial footprint
- 115V operation
- Mounted on four heavy-duty casters for easy mobility throughout the shop floor, with optional overhead suspension mounting brackets available for elevated installation and space-saving airflow positioning.
| Specification | Details |
|---|---|
| Part Number | AFS2200 |
| Airflow Capacity | 2200 CFM |
| Blower | ½ HP Direct Drive |
| Voltage | 115V / 60Hz |
| Full Load Amps | 9.0 Amps |
| First Stage Filter | 24” x 24” x 4” MERV 8 Pleated |
| Second Stage Filter | 24” x 24” x 15” MERV 15 Bag |
| Filter Monitoring | Differential Pressure Monitoring |
| Status Indicators | Red & Green LED Lights |
| Construction | 16 Gauge Steel |
| Dimensions | 40.1” L x 23.6” W x 28.1” H |
Estimated Air Changes Per Hour (12’ Ceilings)
- 1,000 sq. ft. – 11 ACH
- 2,000 sq. ft. – 5.5 ACH
