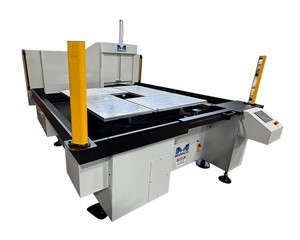

Automatic CE 4-Pallet Pool
For international export outside of the continental USA
Whether running high volume production of the same part or programming several different set-ups, MIDACO's Automatic 4-Pallet Pool will extend operator walk-away time and maximize productivity on your new or existing vertical mill with 4 pallets on 1 shuttle. Save money by increasing spindle utilization during the machining process and quote more competitively. See Brochure PDF
ONE Shuttle + FOUR Pallets = QUADRUPLE the Walk-Away Time
Conveniently access all 4 pallets from either flip-panel station located on 2 sides of the shuttle. Easily load and unload parts onto pallets with a crane or robot without any overhead obstruction.
Full 360 degree rotation of the shuttle's pallet carrousel.
Once a job cycle is complete, pallets will rotate automatically on the shuttle carrousel, ready and scheduled to feed your VMC for multiple hours of unattended machining.
Servo driven with +/- 0.0001” (0.0025mm) repeatability
Specifications:
- 1- servo drive shuttle system with automatic door and light curtain.
- 4 - cast aluminum or cast iron pallets sizes from from 50" x 19" (1270mm x 482mm) up to 50” x 24” (1270mm x 609mm).
- 1 - cast iron receiver with 2,000 lb (908 kg) weight capacity per pallet {with weight evenly distributed}.
- Control panel is fully integrated with the VMC via M-codes.
With safety guarding via a light emitter, mirrors and sensors, a pallet change will not occur if the invisible light beams surrounding the shuttle system are breached.
MIDACO's Automatic 4-Pallet Pool is also available as a Dual System with one shuttle mounted on each side of the VMC, supplying a total of 8 pallets.
For more information
Call or complete our online contact form today.
Check out Ability Metal's Full Success Story with the Automatic 4-Pallet Changer
