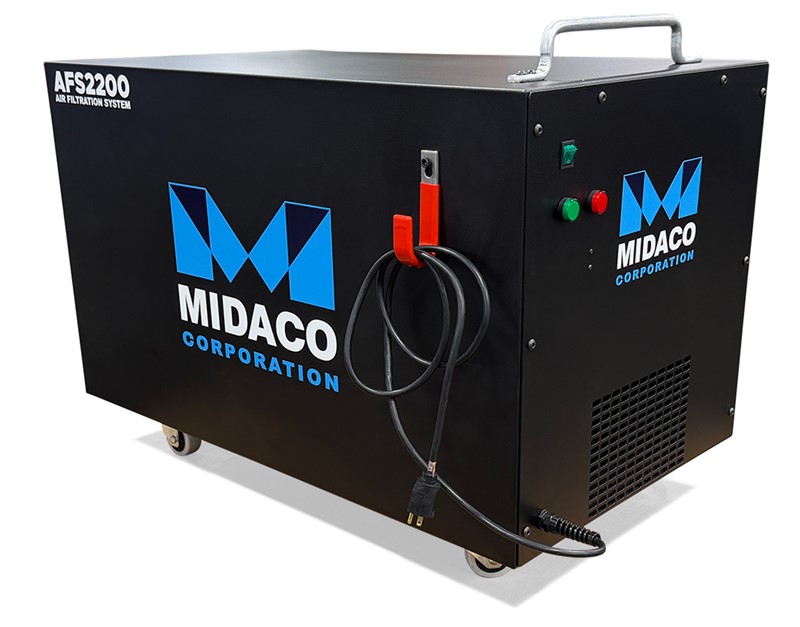

MIDACO AFS2200 Industrial Air Filtration System

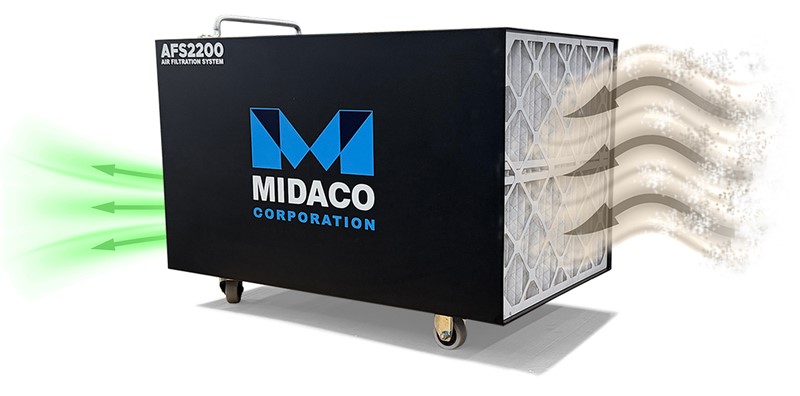

The MIDACO AFS2200 Industrial Air Filtration System is designed to help support cleaner circulating air in CNC machine shops, grinding departments, fabrication facilities, welding areas, and industrial manufacturing environments.

Built for industrial durability and dependable airflow performance, the AFS2200 features powerful 2200 CFM air circulation combined with multi-stage disposable and replaceable MERV filtration designed to capture approximately 85% of airborne particulate in the 0.3–1.0 micron range according to EPA filtration efficiency standards. This includes fine particulate matter commonly generated in machining, grinding, welding, and industrial manufacturing environments*.

This filtration system is also effective in reducing PM2.5 airborne particulate, which is widely recognized as a significant indoor air quality and occupational health concern in industrial and commercial environments*.

*NOTE: Not for venting flammable particulates or for use in woodworking environments.

See AFS2200 Air Filtration System PDF Brochure

Industrial Filtration Features

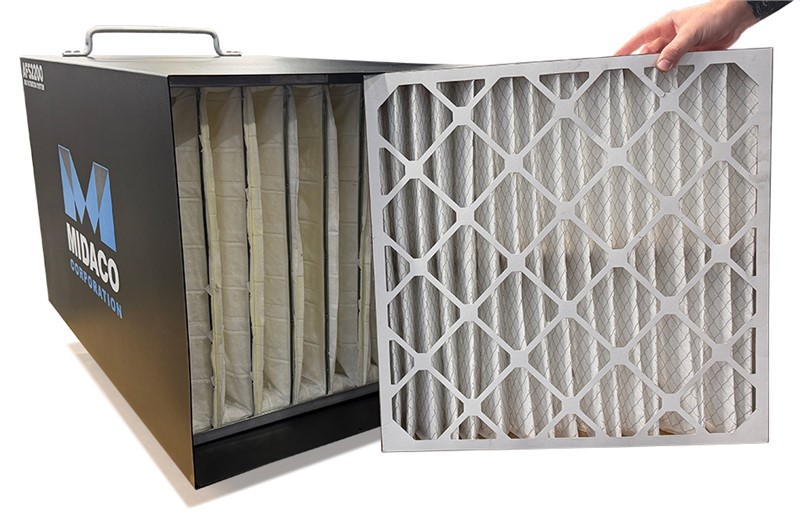

24” x 24” x 4” replaceable/disposable MERV 8 pleated pre-filter at 3.0-10.0 microns

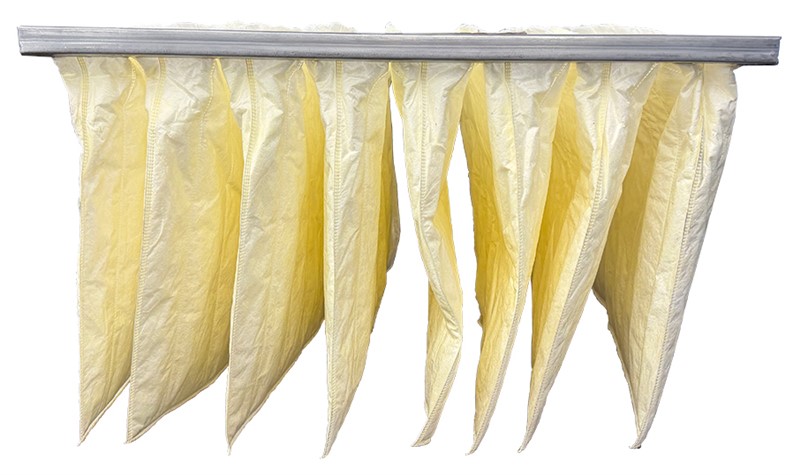

24” x 24” x 15” replaceable/disposable MERV 15 secondary bag filter at 3.0-10.0 microns

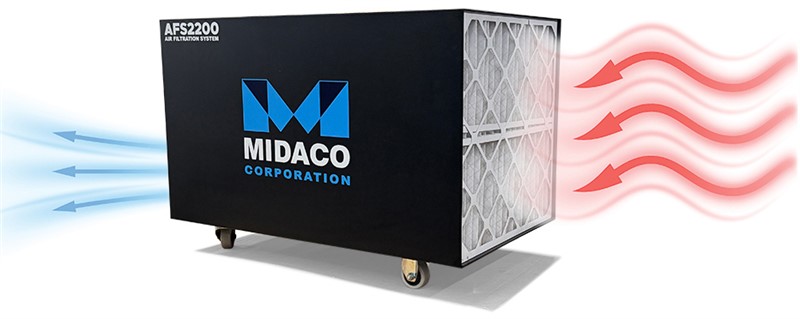

2200 CFM airflow capacity
½ HP direct-drive blower
Differential pressure filter monitoring
Red & green LED filter status lights
Heavy-duty 16-gauge steel construction
115V / 60Hz operation
8ft power cord NEMA 5-15P plug
Mounted on four heavy-duty casters (2 locking) for shop mobility
Optional overhead suspension mounting brackets available

Estimated Air Changes Per Hour (ACH)

Based on 12-foot ceilings:

1,000 sq. ft. – Approximately 11 ACH
2,000 sq. ft. – Approximately 5.5 ACH

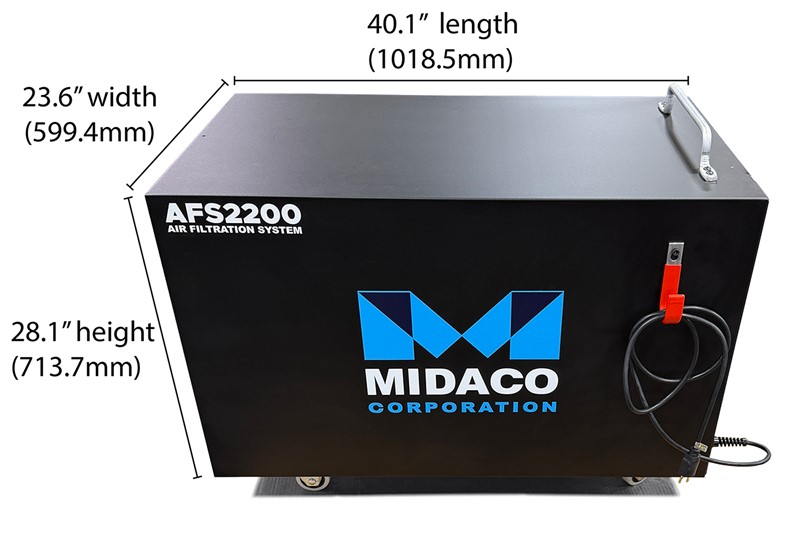

Dimensions:

L 40.1" (1018.5mm)

W 23.6" (599.4mm)

H 28.1" (713.7mm)

Proudly made in the USA, the MIDACO AFS2200 helps support cleaner industrial work environments with reliable airflow and industrial-grade filtration performance.

Frequently Asked Questions

What is the MIDACO Air Filtration System used for?

The MIDACO AFS2200 Air Filtration System is designed to circulate and filter air in machine shops and manufacturing facilities where airborne particulate is generated during machining, grinding, welding, and fabrication operations helping to improve the employee environment.

What type of filtration does the AFS2200 use?

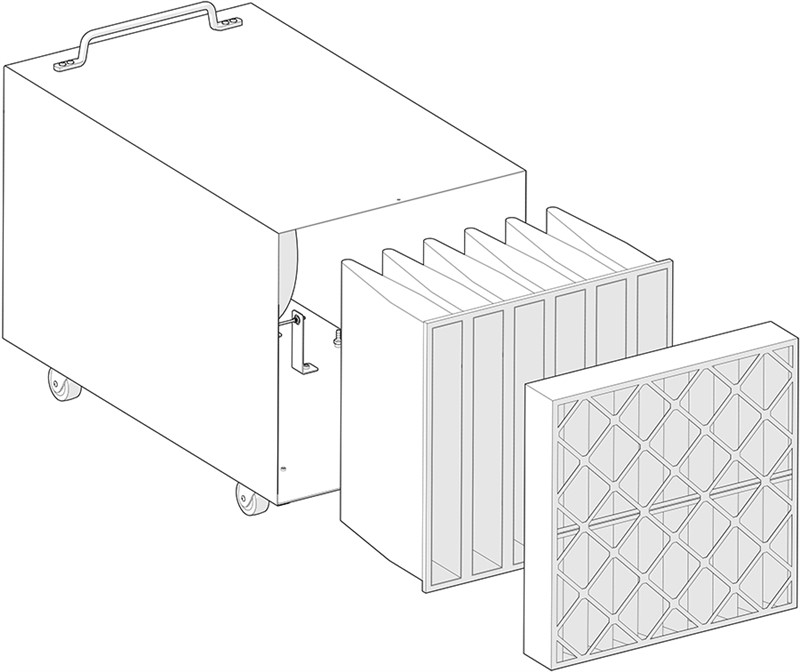

The AFS2200 CNC machine shop air cleaner utilizes a multi-stage filtration system consisting of a MERV 8 pleated pre-filter and a MERV 15 secondary bag filter. Filters are disposable and replaceable.

The MERV 15 secondary filtration stage is designed to capture approximately 85% of airborne particulate in the 0.3–1.0 micron range according to EPA filtration efficiency standards.

The shop floor air filtration system is also effective in reducing PM2.5 airborne particulate, which is widely recognized as a significant indoor air quality and occupational health concern in industrial and commercial environments*.

Can the AFS2200 be moved around the shop?

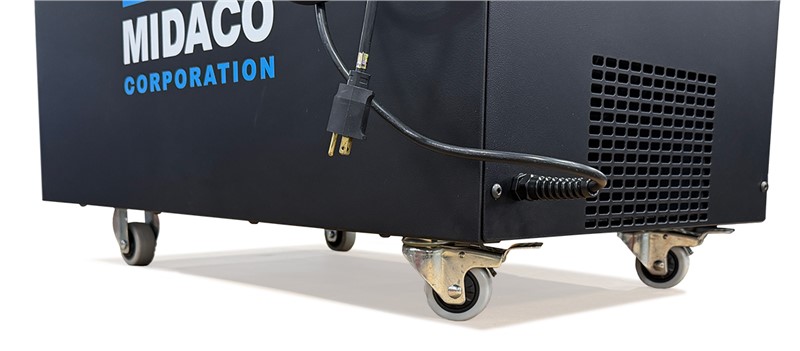

Yes. The AFS2200 shop air filtration system is mounted on four heavy-duty casters for easy mobility throughout the factory floor. For added stability and safety, two of the casters feature locking mechanisms to help secure the unit in place during operation.

Can the system be suspended overhead?

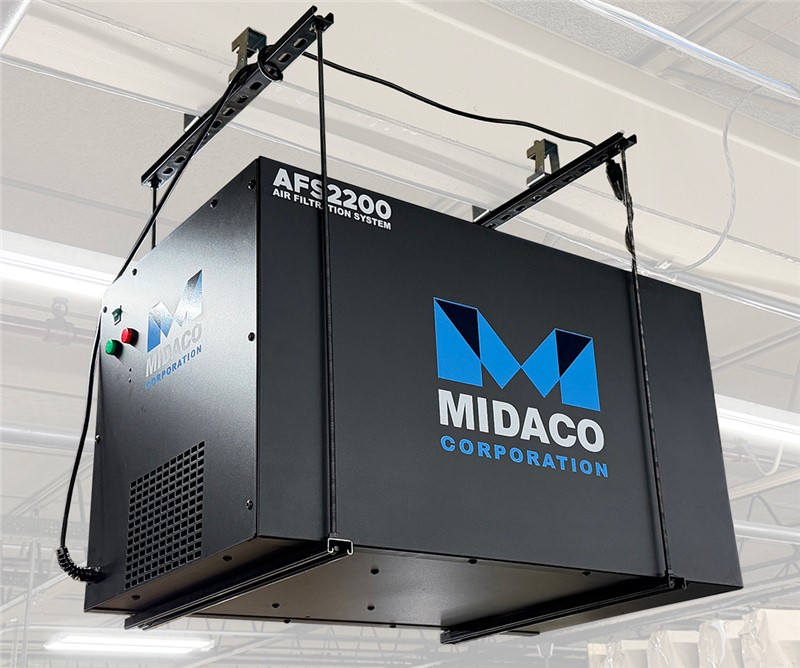

Yes. Optional overhead suspension brackets (part# AFSCMK) are available for ceiling mounted installation and space-saving airflow positioning.

What industries is the AFS2200 ideal for?

The AFS2200 is ideal for CNC machining, grinding dust, fabrication particulate, welding smoke filtration, aerospace manufacturing, and industrial production environments*.

* NOTE: Not for use of venting flammable particulates. Not for use in woodworking environments.
