Industrial Vacuum with Flow Inversion for CNC Machining Coolant, Oil and Chips.

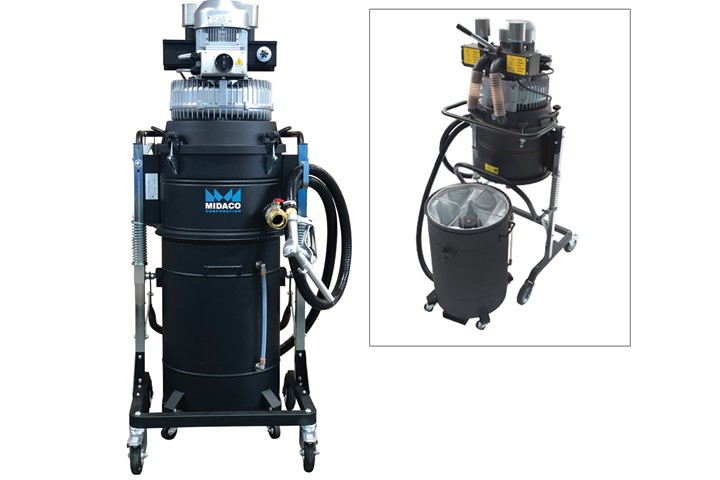

MIDACO’s M264VOS Industrial CNC Vacuum is engineered to remove oil, liquids and metal chips from machine tools and is built with a flow inversion system that allows quick reintegration of all lubricant/coolant back into the machine. The vacuum is generated by a Siemens side channel turbine that allows continuous operation and ensures excellent vacuum with maximum reliability. The container is equipped with a micro-perforated carbon steel basket which separates solids from liquids for efficient filtration of metal chips. A floating level gauge automatically stops the vacuum upon reaching maximum capacity. Outside the container is a level indicator showing the amount of liquid present in the container. Drainage is controlled by a flow inversion valve lever at the top of the vacuum, sending clean liquid back into the machine in the least amount of time possible.
Specifications:
- Power 3.4 kW | 4.6 HP
- Full Load Amps 12.6 A
- NEMA L15-20P plug is provided
- Voltage 240V Delta 3-phase
- Dim. 33” x 28” x 64” (840mm x 710mm 1620mm)
- 26.4 gal. (100L) tank capacity with 1” (25.4mm) drain valve
- 13.2 gal. (50L) solids container
- Max. Vacuum 320 mBar
- Vacuum Inlet 1.97" (50mm)
- Air Flow Rate 420 m3/h
- Extraction Time 26.4 gal. (100L) per 50 seconds
- Discharge Time 26.4 gal. (100L) per 100 seconds
- Separator basket of micro-perforated carbon steel for chip filtration
- Added 150 micron PPL filter for very fine chips
- Sound Level 78 dB(A)
- Weight 242.5 lbs (110kg)
- Includes M100OILKIT* (see Related Options)
