Hose Reel Workholding Management

MIDACO Hose Reel Workholding Management System

Pneumatic & Vacuum Workholding Integration for CNC Pallet Changers

The MIDACO Hose Reel Workholding Management System is a purpose-built solution designed to streamline pneumatic and vacuum workholding connections on CNC machining centers equipped with Automatic Pallet Changers. By eliminating tangled hoses and disorganized connections, this system helps machine shops improve efficiency, reduce setup time, and maintain a safer, more productive workspace.

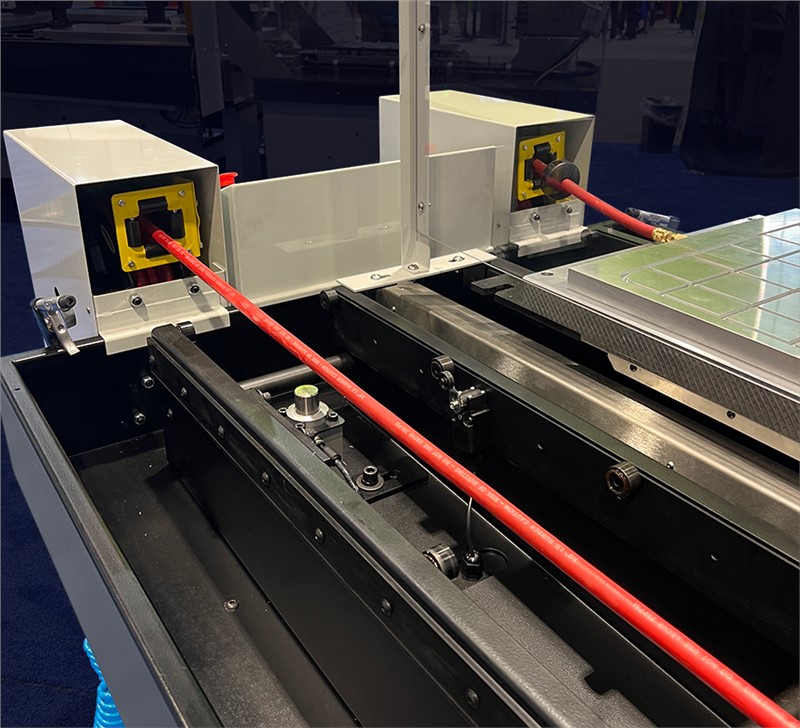

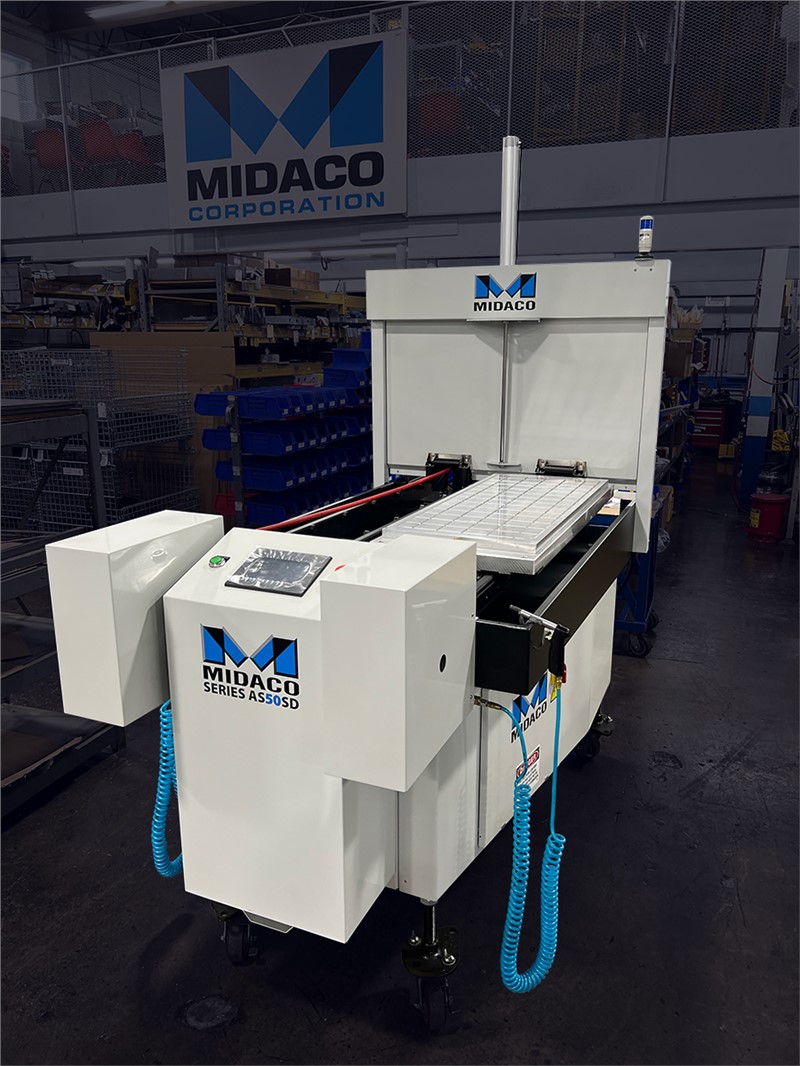

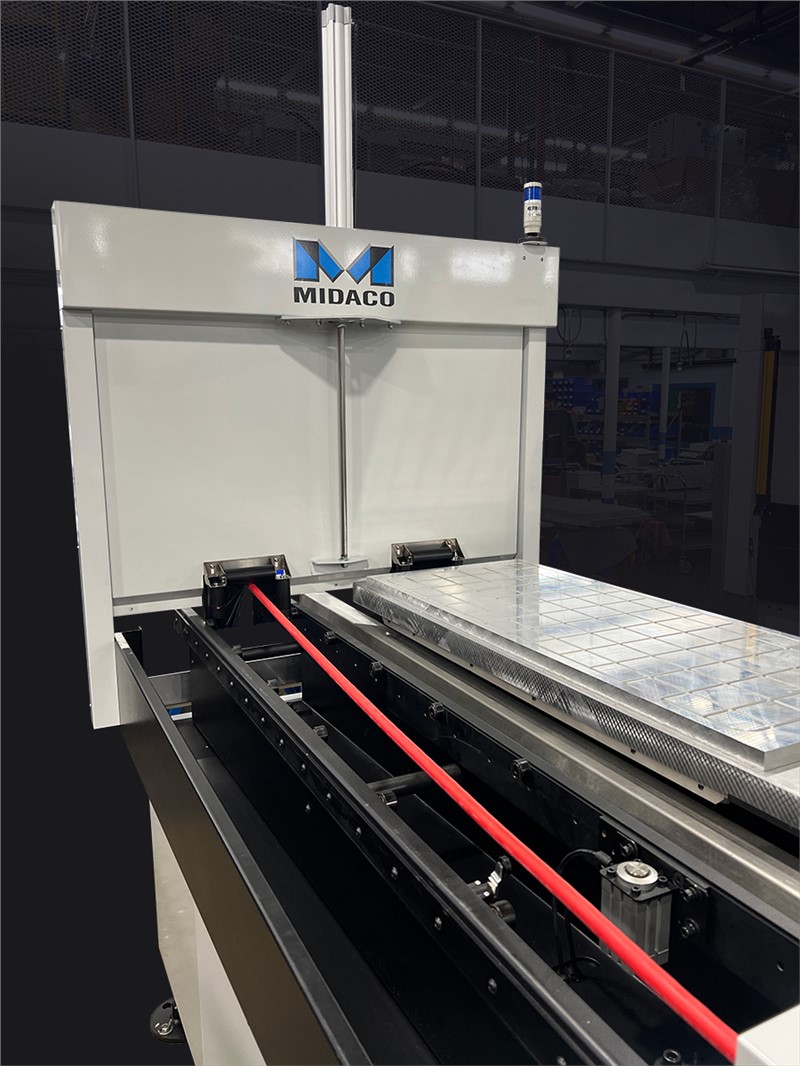

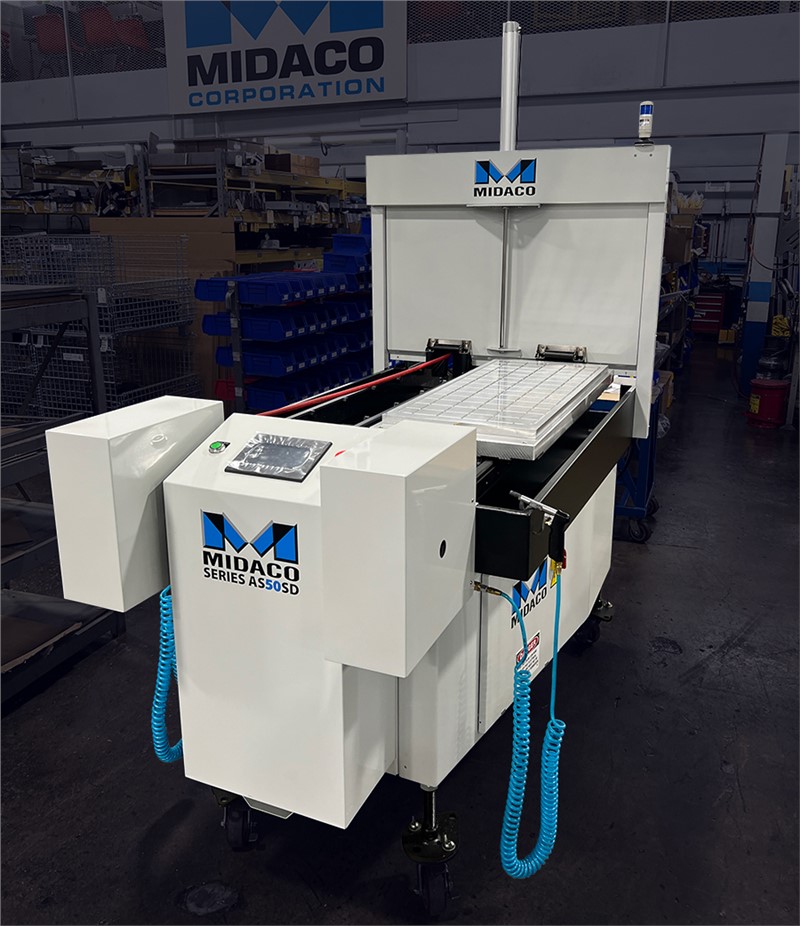

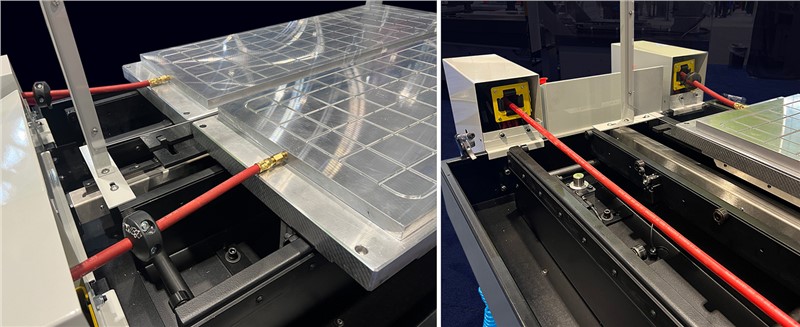

Mounted on both the left and right sides in front of the MIDACO pallet changer shuttle, the hose reel system keeps pneumatic and vacuum lines neatly managed and consistently positioned for reliable operation. This ensures seamless integration with your workholding setup while supporting uninterrupted machining cycles.

Compatible with A16SD, A30SD, A40SD, AS50SD, A50SD, A60SD, and A80SD Series MIDACO Automatic Pallet Changers, this system is engineered for durability in demanding CNC environments.

---

Why Use a CNC Hose Reel Workholding System?

What is a CNC hose reel workholding system?

A CNC hose reel workholding system is a mechanical solution that organizes and manages pneumatic and vacuum hoses used in workholding applications. On pallet changers, it ensures hoses remain protected, properly routed, and ready for repeated automatic indexing.

How do you manage pneumatic and vacuum hoses on a pallet changer?

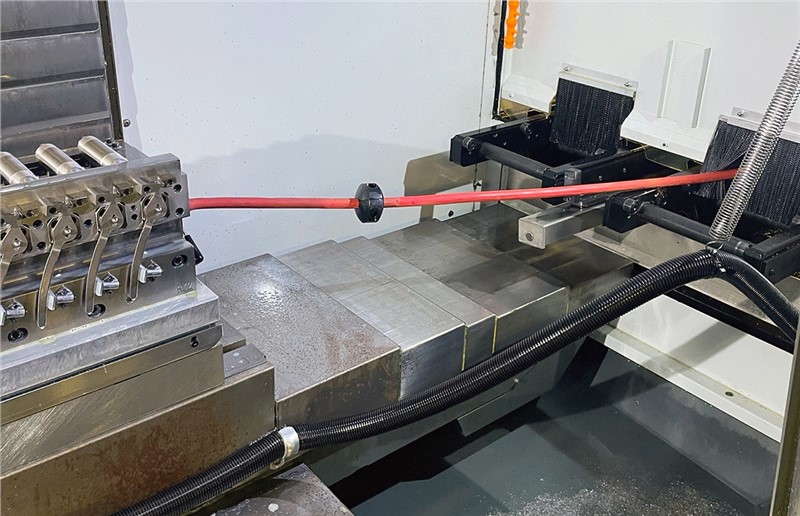

The MIDACO Hose Reel System automatically organizes and controls hose movement during pallet exchanges, preventing tangling, kinking, or interference with machine motion—especially critical in high-production environments.

---

Key Benefits for CNC Machining Operations

• Improved Spindle Uptime
  Reduce delays caused by hose interference or manual adjustments. Keep your machine cutting while setups happen offline.

• Faster Setup & Changeovers
  Pre-stage fixtures with pneumatic or vacuum workholding without worrying about hose management.

• Enhanced Shop Floor Organization
  Eliminate clutter around the pallet changer area and maintain a clean, professional workspace.

• Increased Reliability of Workholding Systems
  Proper hose routing minimizes wear, leaks, and connection failures.

• Seamless CNC Automation Integration
  Designed specifically for MIDACO pallet changers, supporting efficient, repeatable automation workflows.

---

How to Improve CNC Machine Organization and Reduce Setup Time

Disorganized hoses are a hidden source of inefficiency in many CNC shops. By integrating a hose reel system directly into your pallet changer workflow, you eliminate unnecessary operator intervention and reduce the risk of errors during setup.

How to increase spindle uptime with better workholding integration?
By enabling consistent, reliable connections for pneumatic and vacuum fixtures, the MIDACO Hose Reel System supports continuous machining. Operators can prepare the next job offline while the machine is running—maximizing spindle utilization and throughput.

---

Best Hose Management Solution for CNC Pallet Changers

If you're looking for the best hose management solution for CNC pallet changers, the MIDACO Hose Reel Workholding Management System delivers a practical, shop-proven upgrade. It’s an ideal addition for machine shops focused on:

• Increasing productivity on existing CNC machines

• Reducing downtime and setup inefficiencies

• Improving automation readiness without complex integration

• Maintaining clean, organized, and safe machining environments

---

Built for Real CNC Production Environments

Engineered with durability and ease of use in mind, the MIDACO Hose Reel System is a simple yet powerful enhancement that supports higher output, better workflow, and smarter CNC automation.
