Industrial Vacuum with Flow Inversion for CNC Machining Coolant, Oil and Chips.

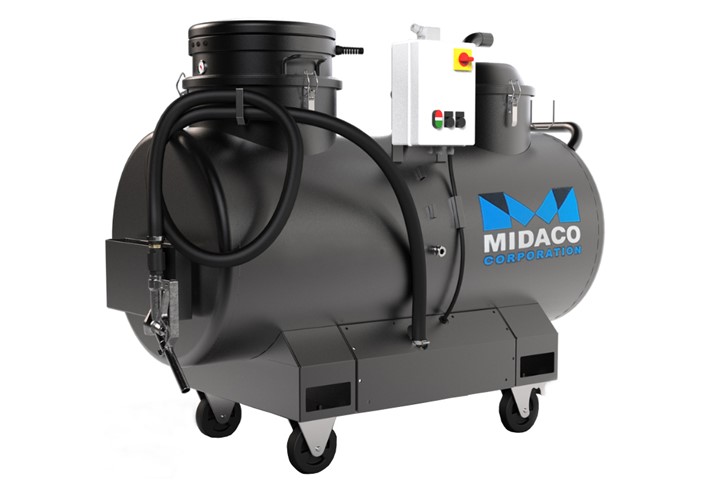

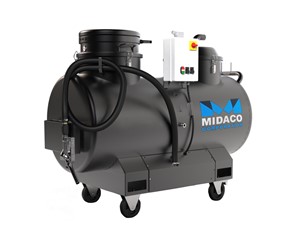

MIDACO’s M1320V Industrial CNC Vacuum is engineered to remove oil, liquids and metal chips from machine tools and is built with a flow inversion system that allows quick reintegration of all lubricant/coolant back into the machine. The vacuum is generated by three single phase ensuring excellent vacuum speed. There is a quick-connection micro-perforated carbon steel basket which separates solids from liquids for efficient filtration of metal chips. An electric level sensor automatically stops the vacuum upon reaching maximum capacity. The M1320V is equipped with a 250 liter/min pump for emptying the filtered liquids.
Specifications:
- Equipped with three (3) single-phase bypass motors
- Power 2.4 kW | 3.2 HP
- Full Load Amps 21.4 A
- NEMA L5-30P plug is provided
- Voltage 110
- Dim. 23.6" x 59.5" x 70" (600mm x 1510mm x 1780mm)
- 132 gal. (500L) tank capacity
- 10.56 gal. (40L) solids container
- Max. Vacuum 250 mBar
- Vacuum Inlet 1.97" (50mm)
- Air Flow Rate 570 m3/h
- Extraction Time 50 gal. (189 L) per 100 seconds
- Discharge Time 50 gal. (189 L) per 100 seconds
- Separator basket of micro-perforated carbon steel for chip filtration
- Added 150 micron PPL filter for very fine chips
- Sound Level 72 dB(A)
- Weight 485 lbs (220kg)
Included Attachments:
- 124" (3149.6mm) hose
- 2” (50.8mm) dia. round hand tool
- M/M metal connector
- 2 rubber connector sleeves

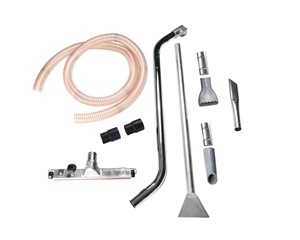

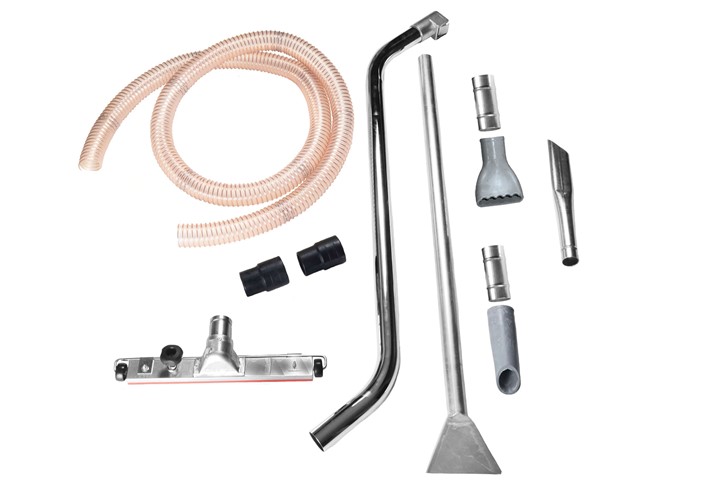

NOTE: Hand & Floor Tool Attachment Kit with additional hose and accessories is sold separately. See part# M100OILKIT in "Related Options" below.
(Video is for demonstration purposes. Model M740VOS is shown.)
