Industrial Vacuum for CNC Machining Coolant, Oil and Chips.

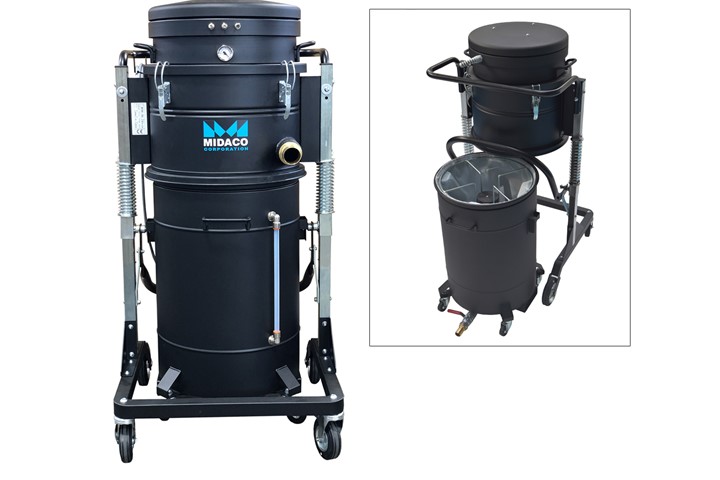

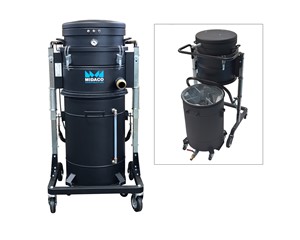

Elevate your CNC machining operations with the MIDACO M264V Industrial CNC Vacuum. Engineered to efficiently remove oil, liquids, and metal chips from machine tools, this robust vacuum system ensures a cleaner, more productive workspace.
Key Features:
- Powerful Suction: Equipped with three bypass motors working in parallel to generate high-speed suction, providing efficient and reliable performance.
- Efficient Filtration: A micro-perforated carbon steel basket inside the bin separates liquids from solids, with an added 150-micron PPL filter for very fine chips.
- External Level Indicator: Easily monitor the quantity of extracted contents with the external level indicator.
- Convenient Drainage: A 1" manual ball valve at the bottom of the tank allows for easy liquid drainage.
- Detachable Container: The base container detaches from its wheeled frame via a manual lever and can be raised and moved with a forklift for convenient disposal of liquids into collection or sediment bins.
Specifications:
- Motors: Three (3) single-phase bypass motors
- Power: 2.4 kW | 3.3 HP
- Full Load Amps: 21.4 A
- Plug Type: NEMA L5-30P plug is provided
- Voltage | Hz: 110/120 | 60
- Dimensions: 27.5” x 17.7” x 55” (700mm x 450mm x 1400mm)
- Tank Capacity: 26.4 gal. (100L) with 1” (25.4mm) drain valve
- Solids Container: 13.2 gal. (50L)
- Max. Vacuum: 250 mBar
- Vacuum Inlet: 2" (50mm)
- Air Flow Rate: 570 m³/h
- Extraction Time: 26.4 gal. (100L) per 50 seconds
- Sound Level: 72 dB(A)
- Weight: 198.4 lbs (90kg)
Included Accessories:
- M100OILKIT Attachment Kit (see Related Options for details)
Note: Video is for demonstration purposes. Model M740VOS is shown.
Experience the power and convenience of the MIDACO M264V Industrial CNC Vacuum, designed to enhance efficiency and maintain cleanliness in your machining environment.
